DRILLING AND WORKOVER RIGS SKYTOP BREWSTER RR400 WORKOVER RIG
DRILLING UNIT : IDECO H-44C Back-in Rambler type single drum drill and workover rig.
DEPTH RATING : 8500 ft. (2600m with 4 ½’’DP) for drilling and 18500 ft (5600 m.) for workover operation.

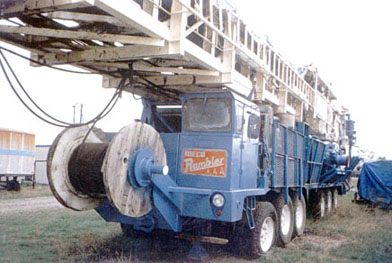

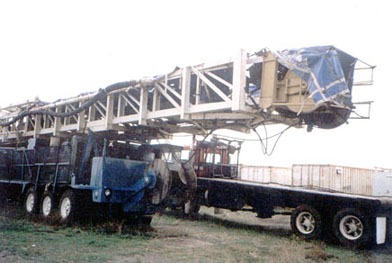

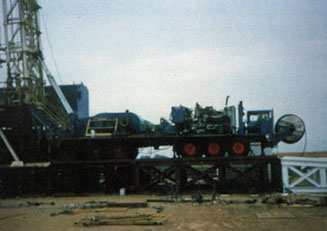

CARRIER : Basic drilling components such as; Drawworks, Cathead, two engines.As prime mover, transmission and air compressor are mounted on ÝDECO BÝR 7515 carrier with triple front and triple rear axles.Auxillary components like hydraulic reservoir, fuel tank, four hydraulic leveling jacks,Braden PD 12A hydraulic winch, folding walkways, stair, safety rails are also mounted on the carrier that has 18.00 x 22.50 front and 10.00 x 20.00 rear tyres.

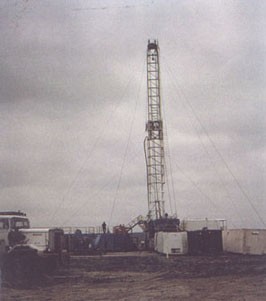

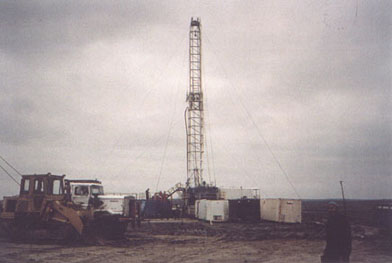

MAST : IDECO model 112- 358 AH mast with rated hook load capacity of 343,000 lbs with 8 lines and 358,000 lbs with 10 lines. The mast is raised and scoped hydraulically by means of 2 each 3-stage hydraulic rams. 1-42”, 5 - 30” sheave crown block , double drill pipe and tubing board, 4’’ stand pipe . Racking capacity ( ft – m ) for 2 7/8’’ tubing (16,600 ft –5000m)

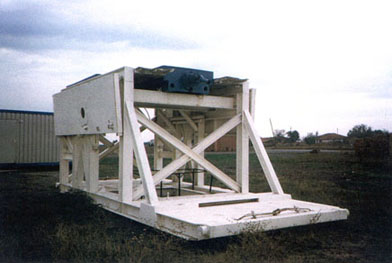

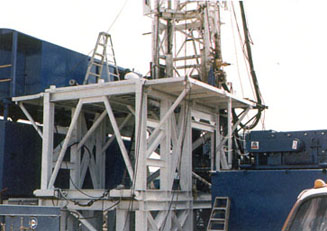

SUBSTRUCTURE : Main substructure and three additional substructers. Suitable to accomodate one annular and Double Ram type Blowout Preventer. Stack up type 360,000 lbs on Rotary Beams and 250,000 lbs setback. Flour height with aditional substructure from above ground level 4.75 m.
DRAWWORKS : Single drum Lebus grooved for 1 1/8” drilling wireline, and catshaft sandreel with 5 speeds. Spinner and Breakout Cathead Foster Model 36/24, pneumatically operated from Driller’s Console. ParmacV80 Hydromatic Brake.

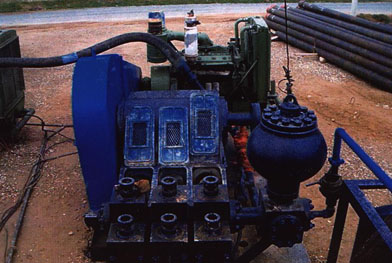

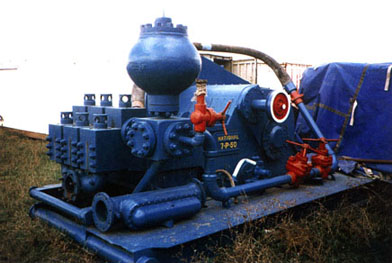

ENGINES : 2 EACH 475 HP GM 12V-71 Detroit Diesel Engines; one has electrical start the other direct air start. Each engine is equipped with a separate torque converter and Allison transmission type CBLT-5860 MUD PUMP : Two National 7- P-50 triplex pump and with Hydrill Pulsation Dampener is rated for 500 HP at 165 SPM . It has a stroke length of 7 ¾ inches,and a maximum pressure rating of 5000 psi. Liners from 3 ½’’ ( 160 gpm ) – 6 ¼” (510 gpm ) are available to satisfy any out put requirments. Triplex pump powered by a 475 HP GM 12V-71 Detroit Diesel Engine.

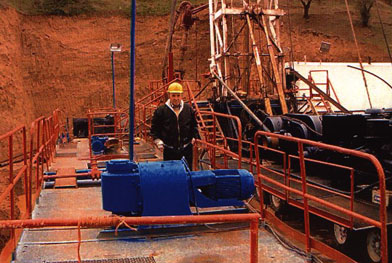

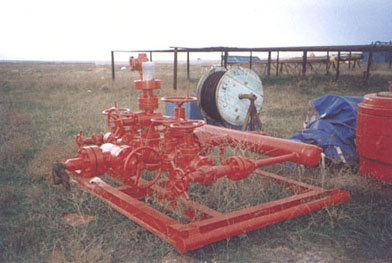

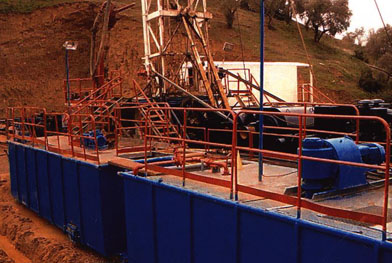

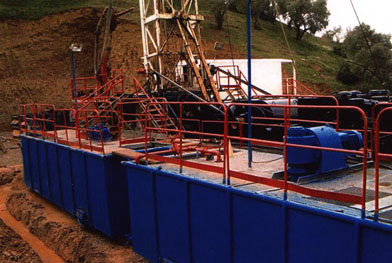

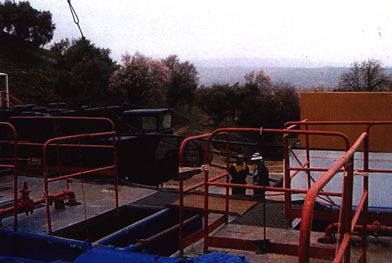

MUD SYSTEM : Two mud tanks with app 500 bbls capacity each, total tank capacity 1000 bbls.First tank is equipped with a SWACO degasser , a seperate poorboy degasser, BRANDT desander, a SWECO desilter, a agitator and HUTCHÝSON double deck tandem shale shaker .Second tank is equipped with the two agitators and two hoppers.Two MÝSSÝON centrifugal mud pumps 5”x6”, each powered by 75 hp GM 3V–71 Detroit Diesel Engine.These charge pumps can also be used for preparation and mud mixing. CHOKE MANIFOLD: 5000 psi working pressure choke manifold with BARTON valves and two adjustable chokes with buffer. GENERATORS : Two CAT 3306 / SR4 generators each 135 KW and Control Panels. COMPRESSORS : Two each one TAMSAN model TAMKO 2400 , 25 HP and 2400 lt / min, other Lister Diesel with 2 cylinder motor.

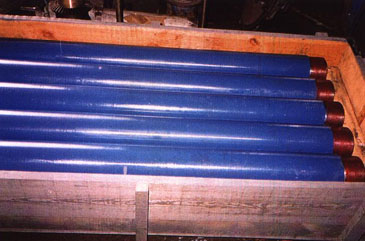

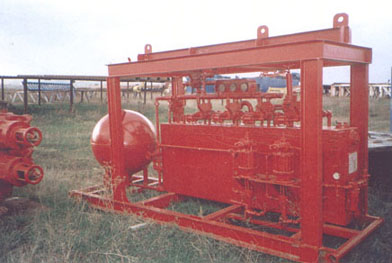

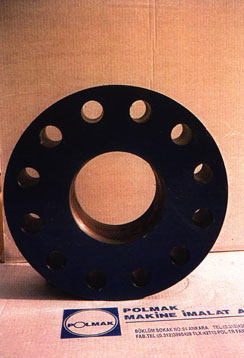

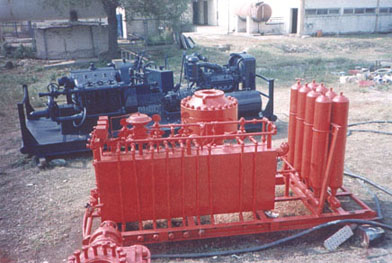

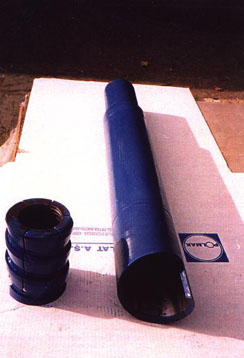

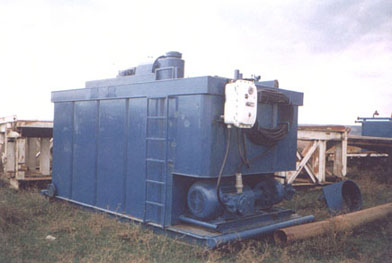

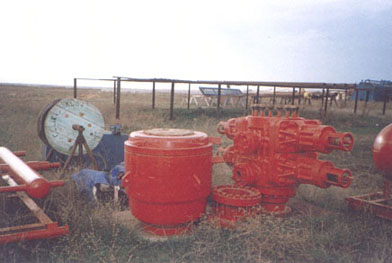

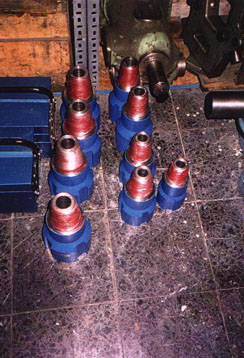

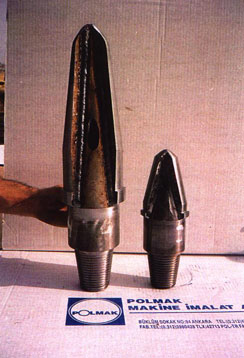

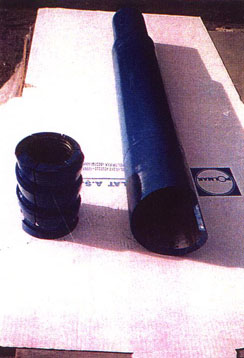

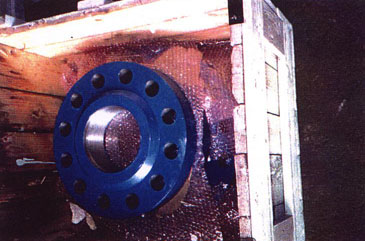

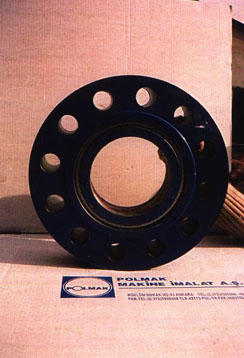

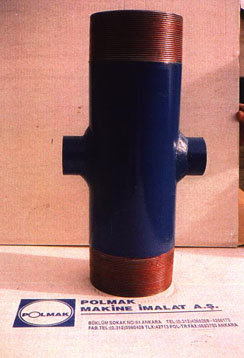

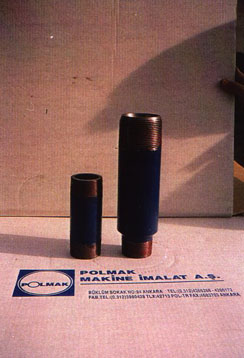

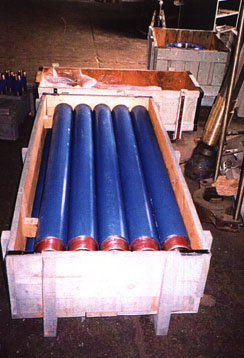

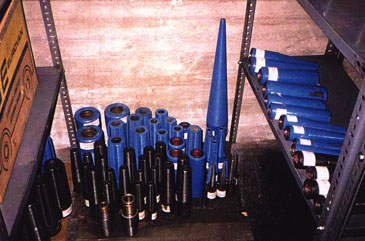

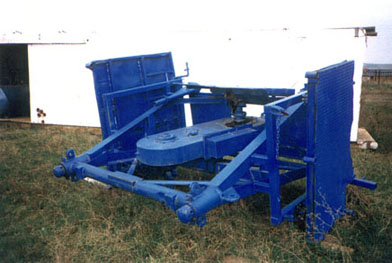

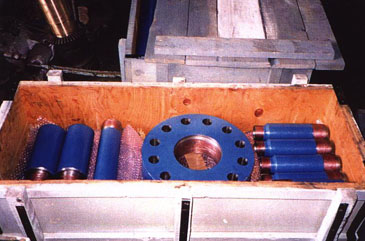

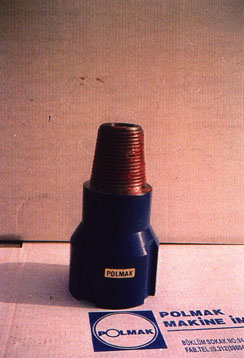

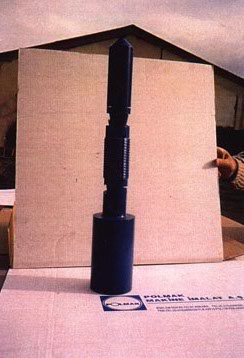

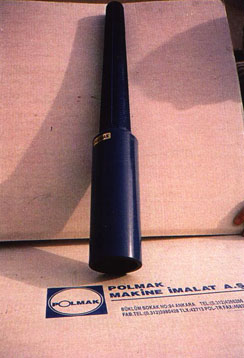

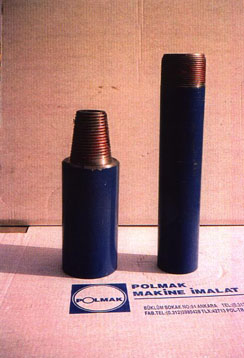

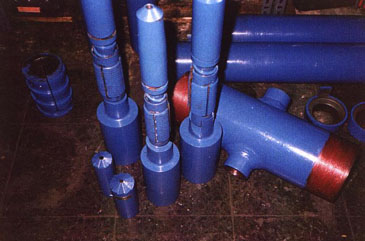

BATCH MIXER : Skid mounted 50 bbls capacity Batch Mixer tank is equipped with a a agitator, a hopper and electrical activated centrifugal pump. Tank can also be used for cement preparation and cement mixer. ROTARY EQUIP : IDECO LR- 20 ½”Rotary Table , IDECO Shorty Travelling Block with 160 tons capacity and ÝDECO TL–200 Swivel 200 ton capacity , 4 ¼” Varco Square Kelly and Rotary Drive Bushing , 4” Rotary House , Upper Kelly Valve and inside BOP . BOP’S :Hydril GK 13 5/8’’x 3000 psi annular preventer , Shaffer 13 5/8” x 5000 psi Type E double ram preventer with 4 1/2”- 2 7/8’’ pipe rams and blind ram space saver 13 5/8” x 5000 psi – 13 5/8” x 3000 psi, double studed adaptor 13 5/8” x 3000 psi – 11” x 5000 psi. BOP CONTROL : Four station KOOMEY air operated closing unit with a 80 gal capacity accumulator and BOP control chiksans. LIGHTING SYS. : Ex-proof rig lighting system for sufficient 24 hours drilling and workover operations and camp area. DRILL STRING : 6500 ft Drill Pipe 4 ½” XH Grade E . 12 Pieces of 6 ¼” x 2 ¼” Drill Collar , 2 pieces 81/2’’ String Stabilizers and one Nearbit Stabilizer Casing, DP, DC, Slip Spider, Slips, Elevators and Handling Tools with various subs. INSTRUMENTS : TOTCO Weight Ýndicator , Geolograph Drilling Recorder with two pen. Measures of Hole Deviation Instruments TOTCO (max angle is 9 degree ).

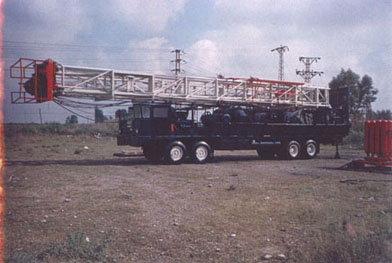

GIN POLE TRUCK : One Gin Pole truck , Kenworth LW(6x 6). WELDING MACH. : Two each ; one is electrical and the other gasoline powered. DOG HOUSE : Driller ‘s house also accomodates Geolograph Drilling Recorder. CONTAINERS : One Mechanic Shop and one Spare Part Warehouse. WATER TANK : 300 Bbls capacity Water Tank with electrical activated Centrifugal pump. SKYTOP BREWSTER RR400 WORKOVER RIG WORKOVER RIG : SKYTOP-BREWSTER H14210-38, double-drum back-in workover, completion and drilling unit. Lebus grooved for 1” drill line, 9/16” sandline, ith air operated control panel. DEPTH RATING : 15,000 FT (4570 m.) for workover and 4600ft (1400 m.) for drilling CARRIER : Skytop-Brewster RR400 tandem front and tandem rear axle on model 418 with GM 8V-71 diesel engine, air starter, remote control emergency shutdown, radiator, Allison CLBT-750 transmission, dual state hydraulic pump, single man cab, Bendix Tu-flo air compressor, air receiver tank, (2) fuel tanks, (4) hydraulic leveling jacks, (2) Koenig hydraulic utility winches, deadline anchor, folding walkways, various stairs and safety railings. DRAWWORKS : The model H14210-38 double drum drawworks has a 450 HP nominal rating. Drum shaft bearing are double row, self aligning type roller bearings, and drum cluct is full air type. Parmac 122, 12” hydromatic brake. MAST : Skytop-Brewster 95 XY 180M 95’, portable four leg tubular mast, 180,000 lbs static hook load on four lines, hydraulically raised and scoped, single three stage raised ram, five sheave crown block, 2” standpipe.
TRAVELLING EQ’T: McKissick split sheave 100 ton travelling block, 24” sheave, 1 ½”x48” elevator links AUXILIARY : FOSTER 58-93R Hydraulic Power Tubing Tonq with back-up lift cylinder. Guiberson F1 Pneumatic tubing slips 2 7/8”, BJ LA 2 7/8” 75 ton Tubing elevator. WEIGHT IND. : Martin-Decker weight indicator capacity of 180000 lbs. MUD PUMP : Gardner-Denver PAHBFC Triplex single acting mud pump, 275 HP, 5” x 8” forged steel fluid end, Oteco 2” shear relief valve, Demco 4”x5” centrifugal charging pump, Cameron type F 3,000 psi pressure gauge, 2” plug valves, all master skidded with engine and silencer. Clinder Diameter 3”(128 gpm)-5”(357 gpm), 8” Stroke, max. WP at 3” liner 3000 psi. Powered by Detroit deisel 8V-71 engine. MUD TANK : One Mud tank 200 bbls capacity. POVER SWIVEL : BOWEN S 2.5 85 ton HYDRAULIC POWER SWIVEL , povered by a GM 4-71 Dýesel Engine, Radýator, Gauges, Fuel tank, Aýr receýver tank, Hydraulýc resevoýr . The control panel has one aýr valve to control dýrectýonand speed , one aýr valve for power unýt engýne speed and a calýbrated torque gage for torque ýndýcatýon ýn ft/lbs . BOP : 11” HYDRILL GK 5000 psi Annular type Preventer or 11” SHAFFER 3000 psi Ram Type Preventer. GENERATOR : CAT-3306 Genset (180 KW) and Junction Boxes type RVS-1. CHOKE MANIFOLD: 3000 psi WP Choke Manifold and two adjustable chokes. TOOLS : Tubing and Drill Collar handling tools and various subs. GIN POLE TRUCK : One Gin Pole Truck, Autocar (6 x 4) CONTAINER : One Ware House. Other equipment that may be required by the Operator can be supplied upon mutual agreement. F320-3DH DRILLING RIG (Not Complete) DRILLING UNIT : F320-3DH Mechanical Deep DRILLING Rig for oil and gas wells. DEPTH RATING : 20,000 ft. (6000 m) for drýllýng. DRAWWORKS : TF-38 type drawworks rated input power of 2000 HP. Wireline pulling force 38 tons with 1 3/8” wireline. Hydromatic brake size 60 inches. Number of speed 4 forward and 2 reverse. PRIME MOVER : 4 Mercedes MB 820 diesel engines, each with a power of 670 HP, complete with 3 ea. “CHC-750-2” torque converters and 3 section compound transmission. The drawworks, Cathead, Rotary Table and both Mud Pumps are driven through Prime Mover and Compound Transmission. MAST : MA-320 type mast; static load capacity; 320 tons (705,000 Ibs) with 10 lines. Mast clear height: 43.5 meters (143 ft). Racking capacity : 6200m. (23,340 ft) of 4 ½” Drillpipe. SUBSTRUCTURE : Working platform height from ground: 6.7 meters (22 ft). The clear height under the rotary table beams for BOP’s: 5.5 meters (18 ft). MUD PUMP : Two Mud Pumps, type 2 PN-1258 both powered by prime mover through compound transmission. Rated power at drive shaft: 1250 HP max Liner size 8” with 16” stroke. Capacity: 814 gpm (8” liner) at 65 spm with max discharge pressure of 5145 psi (5 ¾” liner MUD SYSTEM : Four Mud Tanks; each tank 250 bbls (40 m3) capacity, sand trap 165 bbls (26 m3) , total active pit volume 1165 bbls. Water tank 315 bbls (50 m3), Fuel Tank 250 bbls (40 m3), Degasser, Desilter and Desander. All of the Mud Tanks are equipped with agitators and mud guns. TRAVELLING & : 6 Sheave Crown Block GF-400 with 400 ton working load, 5 sheave Hook ROTARY SYSTEM Block MC-400 with 400 ton working load, Rotary Table MRL-275 (27 ½” opening) and Rotary Table Transmission, Swivel CH-400 with 400 ton working load, two sets air spinners. GENERATORS : CAT 3306 Genset (235 kW) and Kawasaki Genset. Two sets of Junction Boxes type RVS-1 INSTRUMENTS : Martin-Decker Weight Indicator, DRILLING Recorder. CAMP FACILITY : 35 units of caravans, complete with furnitures, air conditioning units, refregetors, electrical radiator heaters, and miscellaneous living accessories like TV, video, office machines, electrical boilers, laundry machines etc.
|
